Home > Products > Internal Combustion Forklifts > Cushion Tire IC Forklifts

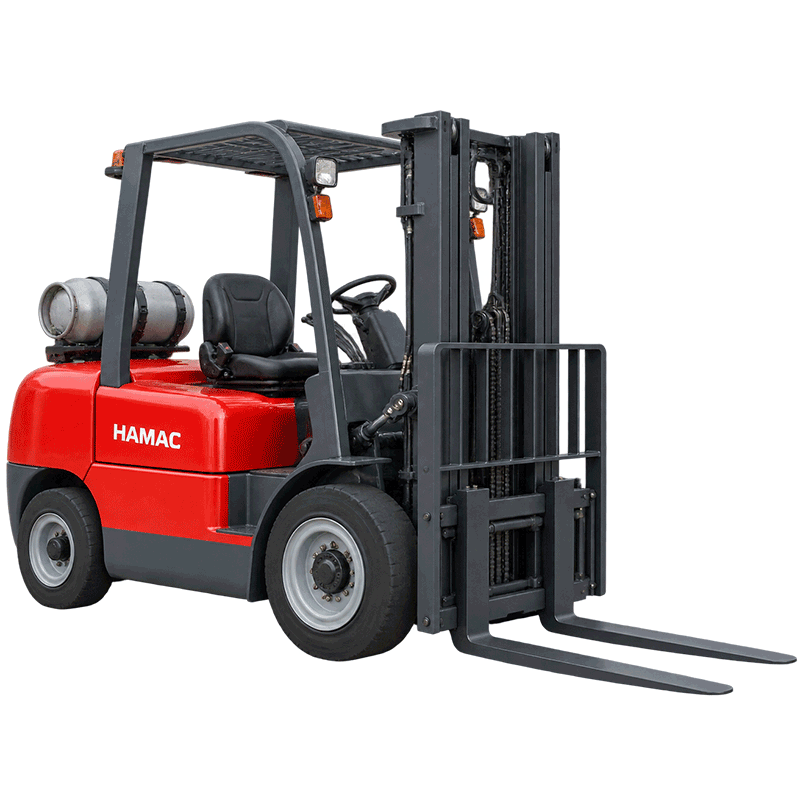

Cushion Tire IC Forklifts

1.5–7 Ton LPG & Gasoline Forklifts

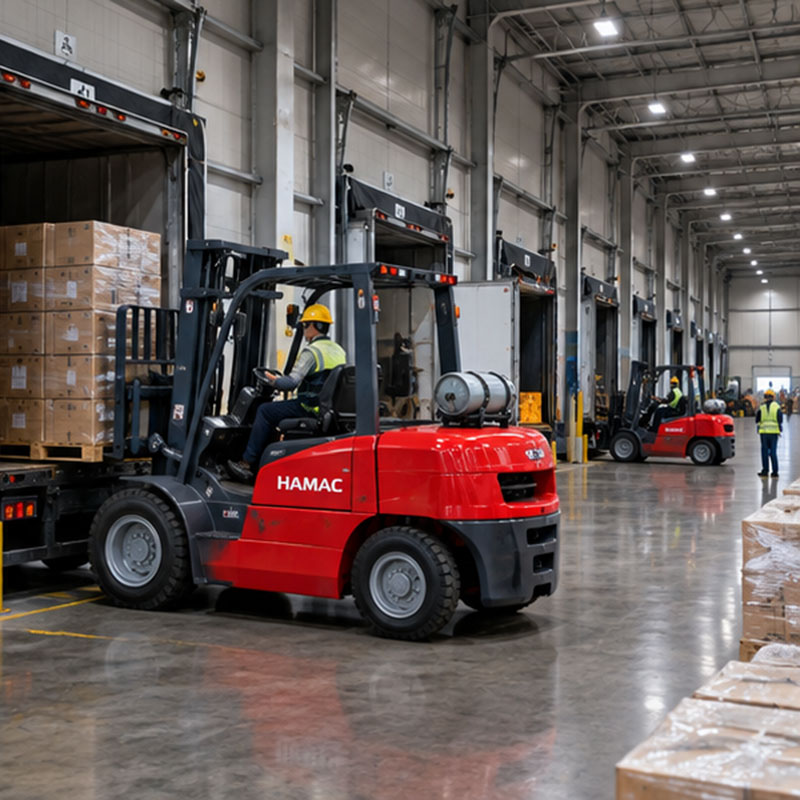

HAMAC cushion tire IC forklifts are compact internal combustion counterbalance forklifts designed for smooth indoor floors, factory workshops, warehouse loading areas, distribution centers and paved industrial facilities. Equipped with solid cushion tires mounted on steel bands, these forklifts provide stable handling, a compact chassis and a smaller turning radius for customers working in limited indoor spaces.

The cushion tire forklift range can be powered by LPG, gasoline or LPG/gasoline dual fuel systems. HAMAC can provide different mast heights, fork lengths, side shifters, fork positioners, full free lift masts, safety lights, cabins and other options according to pallet size, aisle width, lift height and customer operating requirements. Cushion tire IC forklifts are suitable for clean, dry and level concrete or asphalt surfaces.

Capacity: 1.5–7 Tons

Power Options: LPG, Gasoline or LPG / Gasoline Dual Fuel

Tire Type: Solid Cushion Tires for Smooth Indoor Floors

Cushion Tire IC -Technical Specifications Overview

Get a Quote → Ask for Details →

HAMAC cushion tire internal combustion forklifts are available from 1.5 tons to 7 tons. The 1.5T, 1.8T and 2T cushion tire forklifts are suitable for warehouses, workshops, retail distribution, packaging facilities and light manufacturing. The 2.5T, 3T and 3.5T LPG cushion tire forklifts are widely used for truck loading, pallet handling, factory logistics, beverage distribution, paper products and general indoor material handling.

For heavier industrial work on flat and stable surfaces, HAMAC can provide 4T, 5T and 7T cushion tire IC forklifts. These larger models can handle building materials, metal components, large pallets, machinery parts and other industrial cargo in factories, covered yards and paved loading areas. Cushion tire forklifts should not be selected for loose soil, gravel, mud or severely uneven ground; pneumatic tire forklifts or rough terrain forklifts are more suitable for those conditions.

Product Advantages

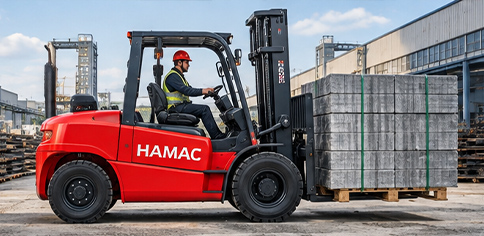

01 Powerful Engine Performance

HAMAC internal combustion forklifts are available with diesel, LPG, gasoline and dual-fuel power options to match different operating requirements. Diesel forklifts provide strong torque for heavy loads and outdoor work, while LPG and gasoline forklifts offer flexible performance for factory, loading dock and mixed indoor-outdoor applications with suitable ventilation. IC forklift power systems are designed to deliver stable travel performance, responsive lifting and dependable operation during continuous material handling tasks.

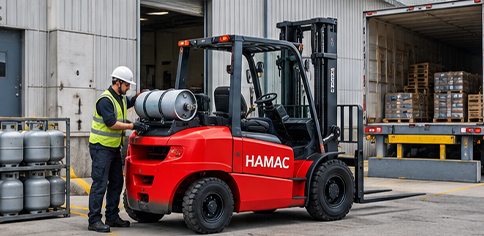

02 Fast Refueling for Continuous Work

Internal combustion forklifts can be refueled quickly, helping customers reduce downtime during long shifts and high-frequency handling operations. Diesel tanks can be refilled efficiently, while LPG cylinders can be replaced quickly when fuel is available on site. This makes diesel, LPG and dual-fuel forklifts a practical choice for rental fleets, logistics yards, busy loading areas and operations that cannot wait for battery charging.

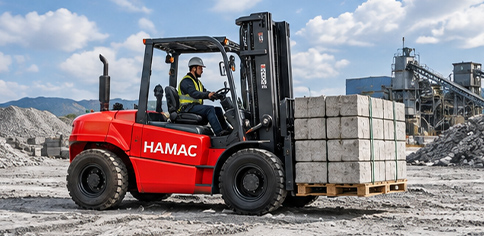

03 Built for Outdoor and Heavy-Duty Applications

With durable frames, powerful engines, high ground clearance and robust drive systems, HAMAC internal combustion forklifts are suitable for industrial yards, construction material storage, timber yards, factories, ports and outdoor logistics areas. They can handle demanding work involving building materials, machinery parts, steel products, timber, palletized cargo and other heavy industrial loads.

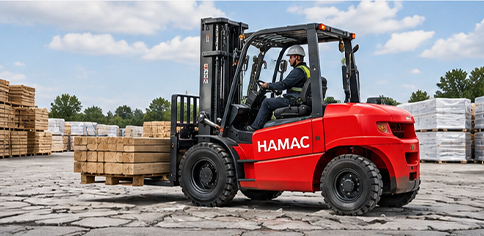

04 Pneumatic Tire Options for Uneven Ground

HAMAC diesel and LPG forklifts can be equipped with pneumatic tires for better traction and stability on paved yards, loading areas and uneven outdoor surfaces. This configuration is especially suitable for construction sites, lumber yards, agricultural facilities, ports and industrial areas where a standard warehouse electric forklift may not be the best choice. Pneumatic-tire IC forklifts are widely used where ground clearance, durability and outdoor mobility are important.

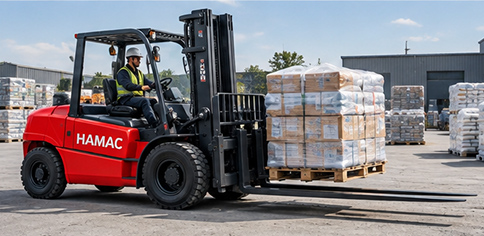

05 Configurable Fuel, Mast and Attachment Solutions

Customers can choose diesel, LPG, gasoline or dual-fuel forklift configurations based on fuel availability, operating hours, emissions requirements and working environment. HAMAC can also provide duplex or triplex masts, full free lift options, side shifters, fork positioners, fork extensions, cabins, air conditioners, warning lights and specialized attachments to match pallet sizes, rack heights and handling tasks. Industry IC models commonly offer diesel, LPG or dual-fuel versions within comparable 2.0–3.5T capacity classes.

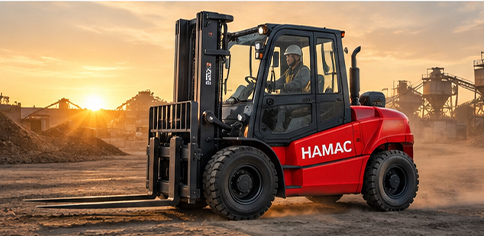

06 Durable Design and Operator Comfort

HAMAC internal combustion forklifts are designed for long operating hours with an ergonomic operator area, clear forward visibility, practical controls and service-friendly component access. Heavy-duty cooling, reliable drivetrain components and reinforced chassis configurations help support stable operation in hot, dusty and demanding work environments. Contemporary diesel/LPG forklift designs commonly combine enhanced cooling, wet-disc brake axles, ergonomic cabins and durable powertrain components to improve uptime and serviceability.

Compatible Attachments

Rallet fork

Bucket

Crane Arm

Mixed barrel

Bale Fork

Snow Blower

Grapple Bucket

Mixed Bucket

Road Sweeper

Mixed barrel

Crass Cutter

Application Scenarios

Construction Sites

Agriculture & Farming

Industrial Logistics

Municipal Works

Mining & Energy

Technical Specifications

Item	Unit	FC15	FC18	FC20	FC25	FC30	FC32	FC35	FC50	FC70
General
Model	-	FC15	FC18	FC20	FC25	FC30	FC32	FC35	FC50	FC70
Power Type	-	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline	LPG / Gasoline
Fuel Configuration	-	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional	LPG / Gasoline / Dual Fuel Optional
Operator Type	-	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Chassis Type	-	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance	4-Wheel Counterbalance
Rated Capacity	kg	1500	1800	2000	2500	3000	3200	3500	5000	7000
Load Center	mm	500	500	500	500	500	500	500	600	600
Tire Type	-	Cushion Tire	Cushion Tire	Cushion Tire	Cushion Tire	Cushion Tire	Cushion Tire	Cushion Tire	Cushion Tire	Cushion Tire
Number of Wheels, Front / Rear	-	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2	2 / 2
Mast and Forks
Standard Lift Height	mm	3000	3000	3000	3000	3000	3000	3000	3000	3000
Optional Lift Height	mm	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000
Mast Type	-	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex	Duplex / Triplex
Free Lift	mm	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Mast Tilt Angle, Forward / Backward	deg	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12
Fork Dimensions, L × W × T	mm	920 × 100 × 35	920 × 100 × 35	1070 × 100 × 40	1070 × 122 × 40	1070 × 122 × 45	1070 × 122 × 45	1070 × 122 × 45	1220 × 150 × 50	1220 × 150 × 60
Fork Carriage Class	-	IIA	IIA	IIA	IIA	IIIA	IIIA	IIIA	IIIB	IIIB
Dimensions
Wheelbase	mm	1300	1300	1450	1450	1700	1700	1700	2200	2250
Overall Length without Forks	mm	2100	2100	2250	2250	2400	2400	2450	3000	3500
Overall Width	mm	1050	1050	1100	1100	1150	1150	1200	1350	1500
Overhead Guard Height	mm	2050	2050	2100	2100	2150	2150	2150	2250	2350
Min. Ground Clearance under Mast	mm	85	85	90	90	95	95	95	100	110
Min. Outside Turning Radius	mm	1850	1850	2050	2050	2250	2250	2300	2800	3200
Performance
Travel Speed, Laden / Unladen	km/h	14 / 15	14 / 15	15 / 16	15 / 16	16 / 17	16 / 17	16 / 17	16 / 17	15 / 16
Lifting Speed, Laden / Unladen	mm/s	450 / 500	450 / 500	450 / 500	450 / 500	430 / 480	430 / 480	430 / 480	400 / 450	350 / 400
Lowering Speed, Laden / Unladen	mm/s	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500	500 / 500
Max. Gradeability, Laden	%	20	20	20	20	20	20	20	18	15
Engine and Fuel System
Engine Type	-	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine	LPG / Gasoline Engine
Engine Brand Options	-	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / GQ-4Y / Chinese Engine Optional	Nissan / PSI / Chinese Engine Optional	To Be Confirmed
Rated Engine Power	kW	31	31	31	31	37	37	37	47	To Be Confirmed
Transmission Type	-	Hydraulic / Automatic Optional	Hydraulic / Automatic Optional	Hydraulic / Automatic Optional	Hydraulic / Automatic Optional	Hydraulic / Automatic Optional	Hydraulic / Automatic Optional	Hydraulic / Automatic Optional	Hydraulic Transmission	Hydraulic Transmission
Optional Configurations
Available Options	-	LPG Configuration, Gasoline Configuration, LPG / Gasoline Dual Fuel System, Cushion Tires, Duplex Mast, Triplex Full Free Lift Mast, Side Shifter, Fork Positioner, Fork Extensions, Long Forks, Full Cabin, Air Conditioner, Heater, Blue Safety Light, Red Zone Warning Light, Rear Working Light, Camera System, Fire Extinguisher and Customized Attachments

Product Overview Product Advantages Compatible Attachments Application Scenarios Technical Specifications

Free Consultation →

Common FAQs

What is a cushion tire IC forklift? −

A cushion tire IC forklift is an internal combustion counterbalance forklift equipped with solid rubber cushion tires mounted on steel bands. It is commonly powered by LPG, gasoline, or a dual fuel system and is designed for smooth, dry, and level surfaces such as warehouse floors, factory workshops, loading docks, and paved industrial facilities.

What is the difference between cushion tires and pneumatic tires? +

Cushion tires are solid rubber tires fitted around a steel band and are designed mainly for smooth indoor concrete floors. They generally provide a smaller turning radius and more compact forklift dimensions. Pneumatic tires are larger and are better suited for outdoor yards, uneven paved surfaces, gravel, and other rougher ground conditions. A cushion tire forklift should not be used on loose soil, mud, or severely uneven terrain.

What capacities are available for HAMAC cushion tire forklifts? +

HAMAC cushion tire IC forklifts are available from 1.5 tons to 7 tons. The main range includes 1.5T, 1.8T, 2T, 2.5T, 3T, 3.2T, 3.5T, 5T, and 7T models. A 2.5 ton cushion tire forklift, 3 ton cushion tire forklift, and 3.5 ton LPG forklift are common choices for warehouse loading, factory logistics, and general material handling.

Can cushion tire forklifts be used indoors? +

Yes. Cushion tire forklifts are optimized for indoor use on smooth and level concrete floors. They are suitable for warehouses, factories, packaging plants, retail distribution centers, truck loading docks, and industrial storage facilities. LPG or gasoline forklifts used indoors must have sufficient ventilation and comply with local emissions and workplace safety requirements.

Can a cushion tire IC forklift work outdoors? +

A cushion tire internal combustion forklift can operate for short periods on smooth, dry, and level outdoor concrete or asphalt, such as a paved loading area. However, it is not recommended for gravel, mud, rough construction sites, or uneven terrain. For those applications, HAMAC recommends a pneumatic tire forklift or a rough terrain forklift.

What fuel options are available for cushion tire forklifts? +

HAMAC cushion tire IC forklifts can be configured with LPG, gasoline, or LPG/gasoline dual fuel systems. LPG forklifts are commonly selected for indoor or mixed indoor-outdoor applications with adequate ventilation, while gasoline and dual fuel forklifts can offer practical flexibility depending on local fuel availability and operating requirements.

What lift heights are available for cushion tire forklifts? +

HAMAC cushion tire forklifts can be equipped with duplex or triplex mast configurations. Standard lift height is typically 3000 mm, while optional lift heights can range from 3000 mm to 6000 mm depending on the model, load capacity, mast design, attachment, and residual capacity requirement. Full free lift mast options can be considered for low-ceiling warehouses and container loading.

Can a cushion tire forklift be equipped with attachments? +

Yes. HAMAC cushion tire forklifts can be equipped with side shifters, fork positioners, fork extensions, long forks, carton clamps, bale clamps, paper roll clamps, drum handlers, and other material handling attachments. The final residual capacity must be confirmed after adding an attachment because its weight and changed load center affect forklift lifting performance.

Why choose a cushion tire forklift for warehouse work? +

A cushion tire forklift is a practical choice for warehouse and factory operations because its compact chassis and smaller turning radius help operators maneuver in tighter spaces. The solid cushion tires are suitable for smooth indoor floors and do not require air pressure maintenance. It is especially useful for truck loading, pallet handling, manufacturing logistics, and distribution applications.

What information is needed to select the right cushion tire forklift? +

Please provide the required capacity, load center, lift height, pallet dimensions, aisle width, floor type, indoor or outdoor working environment, ventilation condition, preferred fuel type, daily operating hours, attachment requirement, quantity, and destination country. HAMAC can recommend a suitable LPG, gasoline, or dual fuel cushion tire forklift configuration.
