HT3007
Telehandlers
Lifting capacity: 3000 kg
Max. lift height: 7 m
Consult now

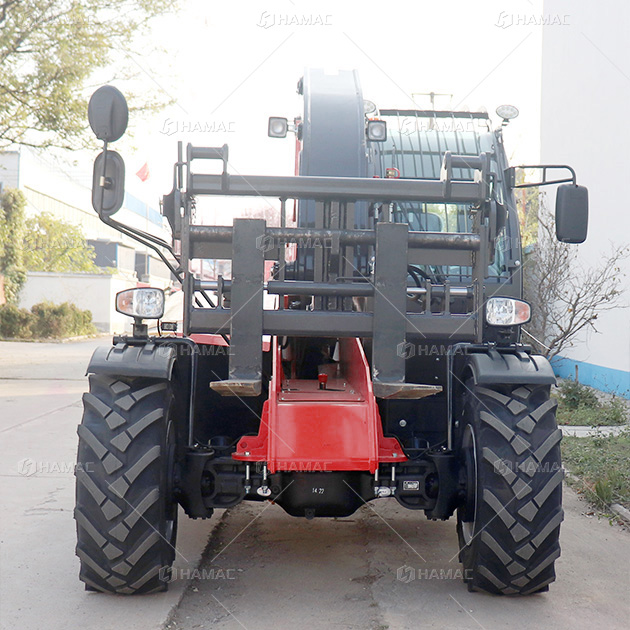

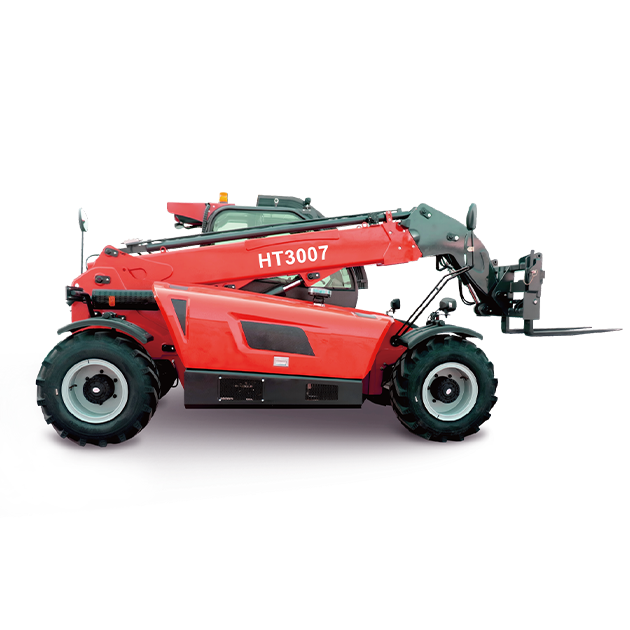

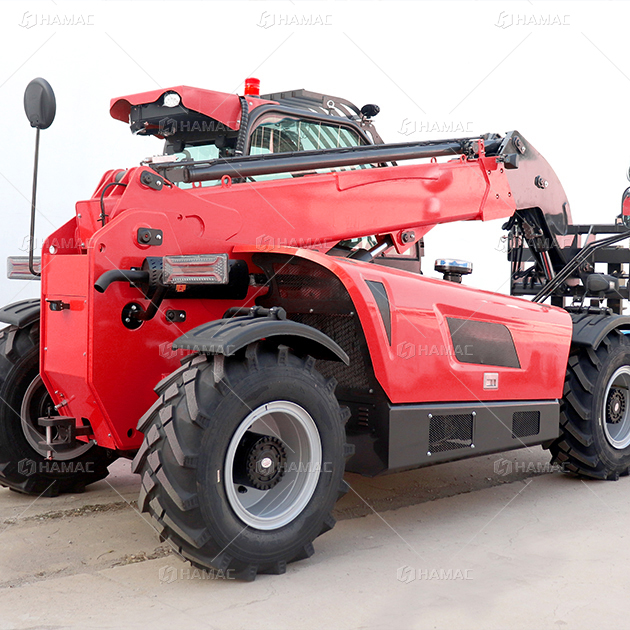

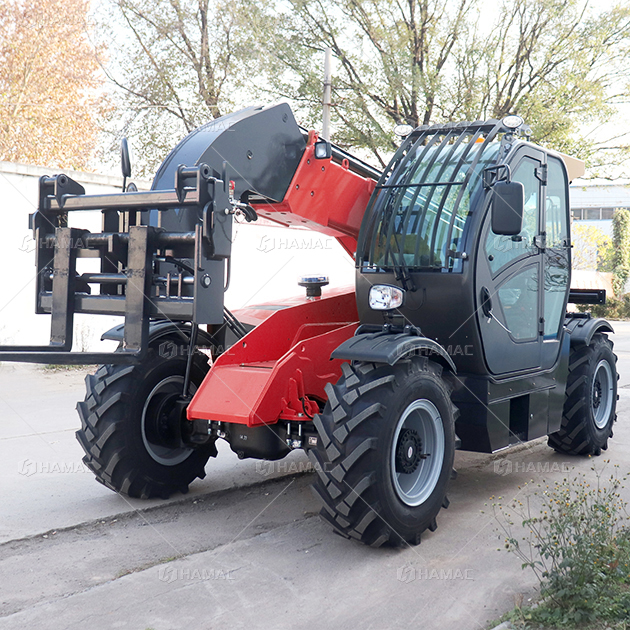

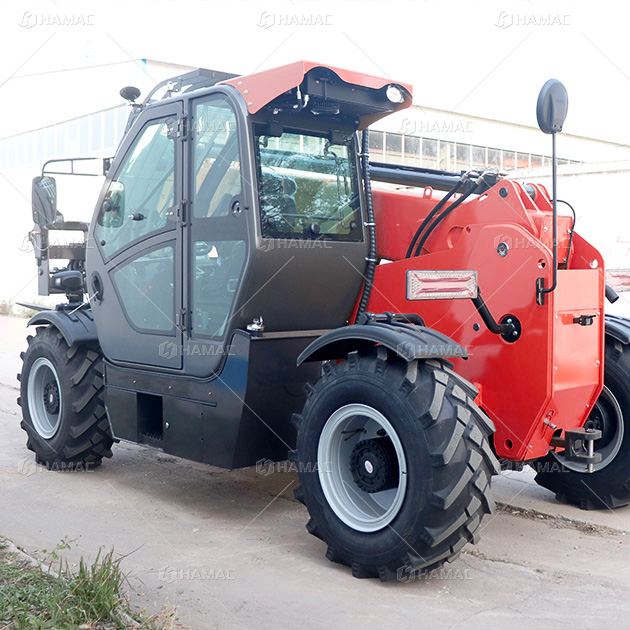

The HAMAC HT3007 is a compact 3 ton telehandler with a 7 m telescopic boom, designed as a small but powerful handler for busy construction sites, industrial yards and modern farms. Its compact dimensions and tight turning radius make it easy to maneuver between buildings, in cluttered yards and around traditional low‑height farm structures, while the dedicated 4×4 chassis, rough‑terrain tyres and three steering modes provide strong traction and precise control on soft or uneven ground. With 7 m lift height, HT3007 can place pallets, bales and building materials onto second‑ and third‑floor work areas or deep into high racks, giving operators true boom reach beyond what a conventional forklift can offer.
Built around a heavy‑duty telescopic boom and quick‑attach carriage, the HT3007 telehandler works with forks, general‑purpose buckets, lifting jibs and work platforms so one compact machine can handle daily truck unloading, yard transfer, light loading and low‑to‑mid level installation or inspection jobs. Typical applications include handling bricks, cement and formwork on small to medium construction projects, stacking feed and bedding on farms, and supporting maintenance tasks around warehouses and industrial plants. For owners and rental fleets wanting a telehandler that fits tight spaces but still delivers genuine 3 t capacity and 7 m reach, HT3007 offers an efficient, all‑terrain alternative to using separate cranes, loaders and forklifts.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 2500 kg |
| Max. lifting height | 6.00 m | |
| Max. outreach | 2.16 m | |
| Weight and dimensions | Overall length to carriage | 4.00 m |
| Length to face of forks | 5.22 m | |
| Min transport size | 3.86 m | |
| Overall width | 2.02 m | |
| Track width | 1.70 m | |
| Overall height | 2.05 m | |
| Wheelbase | 2.80 m | |
| Ground clearance | 0.23 m | |
| Overall cab width | 0.82 m | |
| Tilt-up angle | 10 ° | |
| Tilt-down angle | 100 ° | |
| External turning radius (over tyres) | 4.50 m | |
| Unladen weight (with fork) | 5800 kg | |
| Tires type | Pneumatic | |
| Standard tires | 12-16.5 | |
| Forks length/ width/ section | 1220 mm × 122mm / 50 mm | |
| Performances | Lifting | 17 s |
| Lowering | 11 s | |
| Extension | 11 s | |
| Retraction | 6.5 s | |
| Crowd | 3.1 s | |
| Dump | 3.0 s | |
| Engine | Engine brand | Yunnei |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YN27GBZ | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| LC. Engine power rating - Power | 70.7 Hp / 58 kW | |
| Max. torque / Engine rotation | 181 Nm @ 2240 rpm | |
| Drawbar pull (Laden) | 4200 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2 / 2 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air-cut brake | |
| Service brake | immersed multi-discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 85 L/min - 220 bar | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 710L | |
| Fuel tank | 80L | |
| Noise and vibration | Noise at driving position (LpA) | 76 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |
