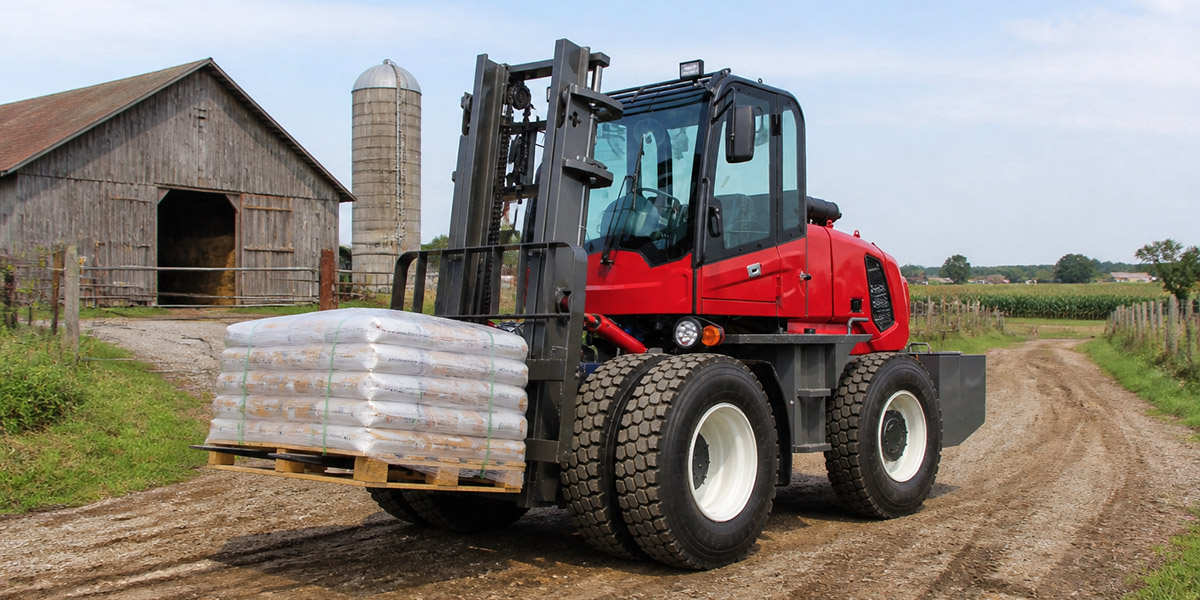

HAMAC 5 Ton Dual‑Tire Articulated All Terrain Forklift for Heavy‑Duty Rough Terrain Work

The HAMAC 5T dual-tire articulated all terrain forklift is built for operators who need strong lifting capacity and superior stability on soft, uneven or heavily loaded ground. With a 5000 kg rated load and a dual-tire rear axle configuration, this model spreads weight more evenly across the ground, reducing sinkage and improving traction compared with single-tire設计 in demanding rural and industrial environments.

Key specifications

This 5 ton forklift has an overall weight of 6000 kg and overall dimensions of 4400 x 2400 x 2750 mm, giving it a solid, stable footprint for heavy lifting tasks. It is powered by a Yunnei 4102 supercharged engine delivering 76 kW, paired with an aggravated hub reduction axle and 4x4 wheel drive for reliable performance on slopes and rough ground with a maximum gradeability of approximately 25 degrees.

The mast offers a customizable lifting height from 3000 mm up to 6000 mm, with a gantry height range of 2250 to 2930 mm, allowing the machine to be configured for different stacking and loading tasks. A 4000 mm wheelbase, 4000 mm minimum turning radius and 16/70‑R22.5 dual tires round out a chassis designed for both maneuverability and load‑bearing strength.

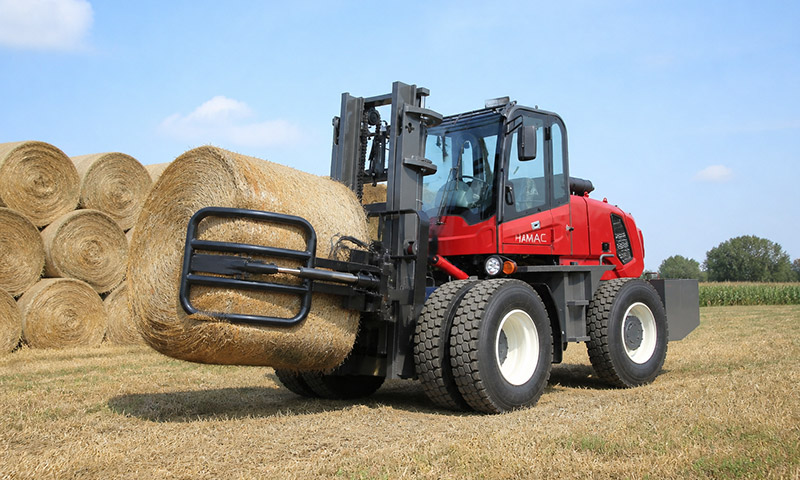

Round bale handling

Why choose the dual‑tire configuration

Compared with a single‑tire rear axle, the dual‑tire version of this 5 ton articulated forklift distributes load over a larger tire contact area, which helps reduce ground pressure on soft soil, wet fields or loose gravel. This makes it particularly useful for farms with muddy access roads, forestry sites with uneven terrain, and rural yards where ground conditions change with the seasons.

The articulated chassis allows the front and rear sections to pivot independently, so the forklift can turn tightly around obstacles such as trees, storage sheds or parked equipment, while the dual‑tire axle keeps the machine stable even when carrying loads close to its 5000 kg rated capacity.

Typical applications

On farms, this 5T dual-tire forklift handles tasks such as moving pallets of feed, fertilizer and seed from delivery trucks to storage barns, transporting bulk bags of grain, and supporting loading during harvest season. In forestry and rural infrastructure projects, it can move logs, construction materials or maintenance equipment across soft or uneven access roads where standard forklifts would struggle.

With optional attachments such as flat clamps, round clamps, corn clamps, pipe clamps, side shifters, soft pack ejectors, adjustable forks and boom cranes, the same base machine can be adapted for specific tasks like handling round bales, pipes, drums or palletised goods, extending its usefulness across multiple seasons and job types.

Farm road transport

Forestry log handling

Built for reliable year‑round operation

The combination of a supercharged diesel engine, reinforced axle and dual rear tires makes this 5 ton articulated forklift a dependable choice for customers who need consistent performance in variable rural or semi‑industrial conditions. Whether used for daily farm logistics, forestry material handling or general rough‑terrain transport, the dual‑tire design adds an extra layer of stability and ground‑friendly performance to HAMAC's all‑terrain forklift range.

Available attachments and customization

HAMAC offers this 5T dual-tire articulated forklift with a range of optional attachments, including quick‑change buckets, tilting grabs, tilting devices, flat and round clamps, corn and pipe clamps, side shifters, soft pack ejectors, adjustable forks, straight and flying boom cranes, snow sweepers and buckets with claws. This flexibility allows customers to configure one base machine for multiple tasks throughout the year, from material handling to specialized agricultural or industrial work.
