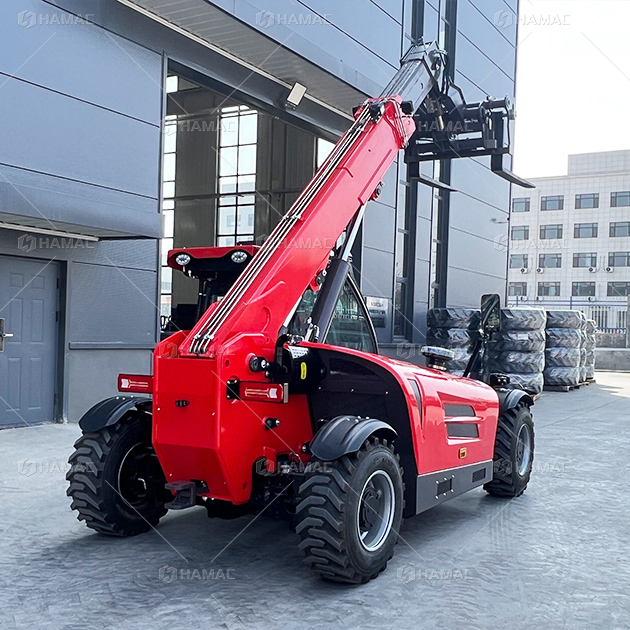

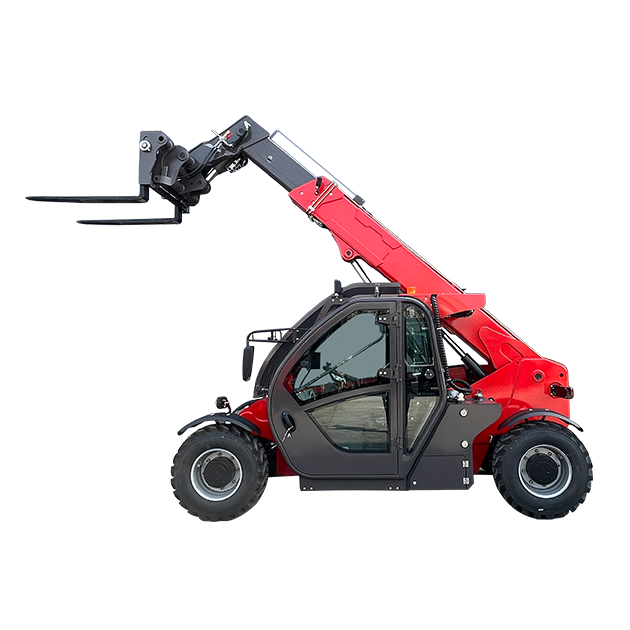

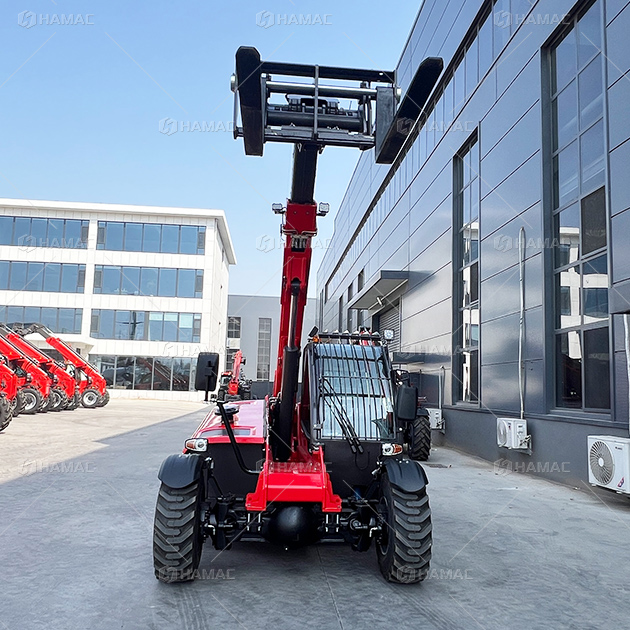

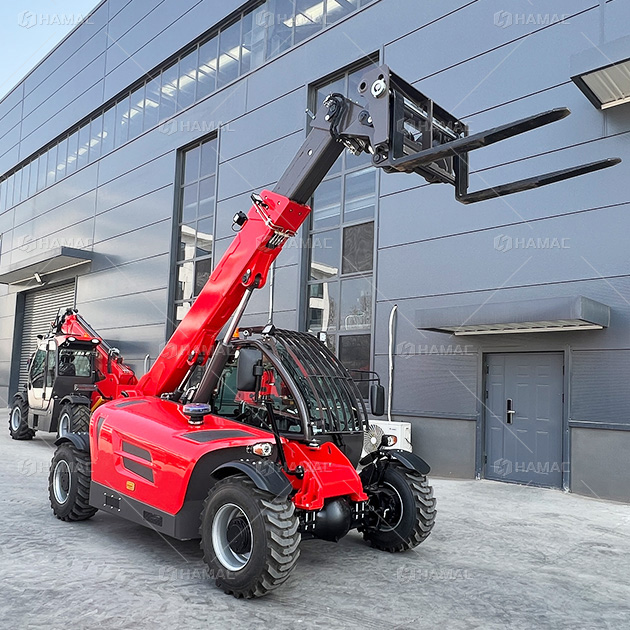

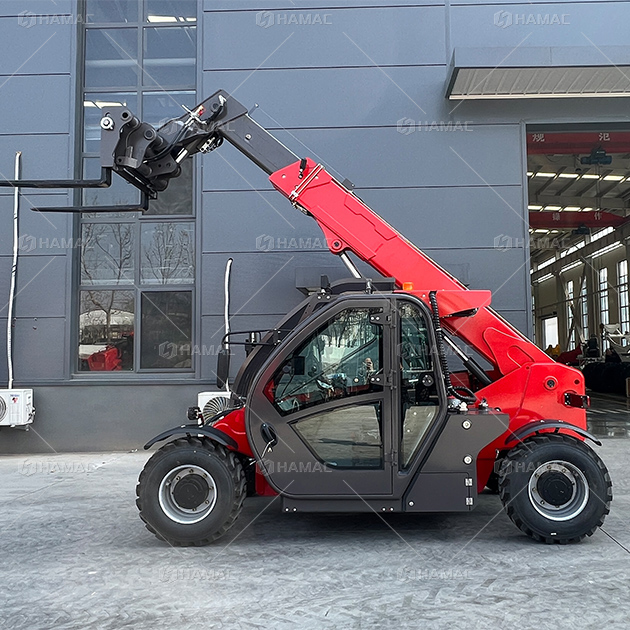

The HAMAC HT2506 is a compact 2.5 ton telehandler with a 6 m telescopic boom, built for small construction sites and farms that need reach in tight spaces. Its short wheelbase and low overall height make it easy to work between buildings, inside yards and in farm sheds, while 4×4 drive and rough‑terrain tyres keep the machine moving confidently on mud, gravel and soft ground. Combining forklift lifting with boom reach, the HT2506 can unload trucks, move materials across uneven ground and place loads onto first‑ and second‑floor levels or into high racks.
HAMAC equips the HT2506 telehandler with a quick‑attach carriage for forks, buckets, light crane jibs and work platforms, so one compact machine can switch quickly between pallet handling, bulk loading and low‑rise installation or inspection tasks. Typical uses include pallets of bricks and cement on small building projects, bales and feed on farms, and maintenance work around industrial plants where larger telehandlers cannot fit. For owners and rental fleets, the HT2506 offers a cost‑effective way to gain true all‑terrain material‑handling capability beyond what a conventional forklift can deliver.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 2500 kg |
| Max. lifting height | 6.00 m | |
| Max. outreach | 2.16 m | |
| Weight and dimensions | Overall length to carriage | 4.00 m |
| Length to face of forks | 5.22 m | |
| Min transport size | 3.86 m | |
| Overall width | 2.02 m | |
| Track width | 1.70 m | |
| Overall height | 2.05 m | |
| Wheelbase | 2.80 m | |
| Ground clearance | 0.23 m | |
| Overall cab width | 0.82 m | |
| Tilt-up angle | 10 ° | |
| Tilt-down angle | 100 ° | |
| External turning radius (over tyres) | 4.50 m | |
| Unladen weight (with fork) | 5800 kg | |
| Tires type | Pneumatic | |
| Standard tires | 12-16.5 | |
| Forks length/ width/ section | 1220 mm × 122mm / 50 mm | |
| Performances | Lifting | 17 s |
| Lowering | 11 s | |
| Extension | 11 s | |
| Retraction | 6.5 s | |
| Crowd | 3.1 s | |
| Dump | 3.0 s | |
| Engine | Engine brand | Yunnei |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YN27GBZ | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| LC. Engine power rating - Power | 70.7 Hp / 58 kW | |
| Max. torque / Engine rotation | 181 Nm @ 2240 rpm | |
| Drawbar pull (Laden) | 4200 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2 / 2 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air-cut brake | |
| Service brake | immersed multi-discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 85 L/min - 220 bar | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 710L | |
| Fuel tank | 80L | |
| Noise and vibration | Noise at driving position (LpA) | 76 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |
