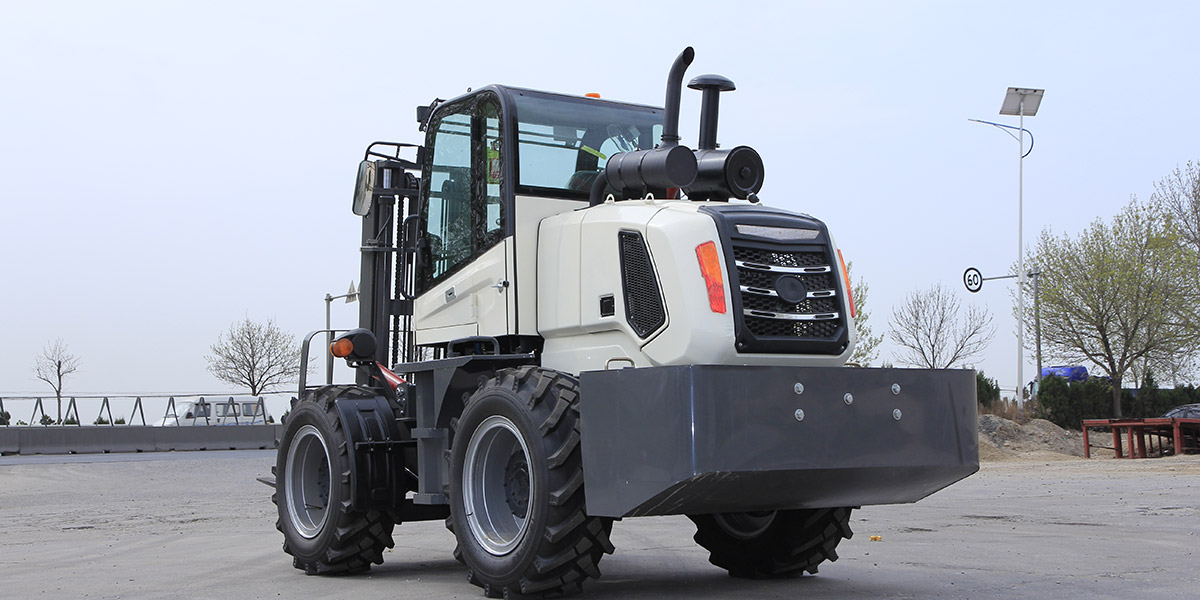

6 Ton Articulated All‑Terrain Forklift Deployed for Heavy‑Duty Outdoor Material Handling

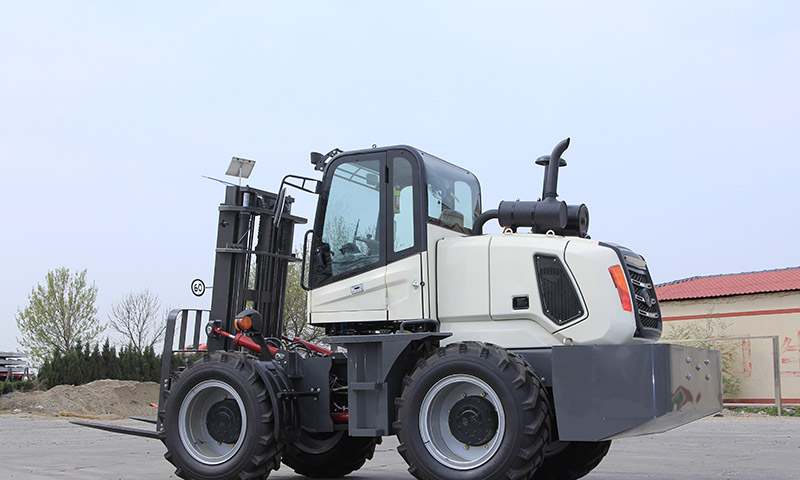

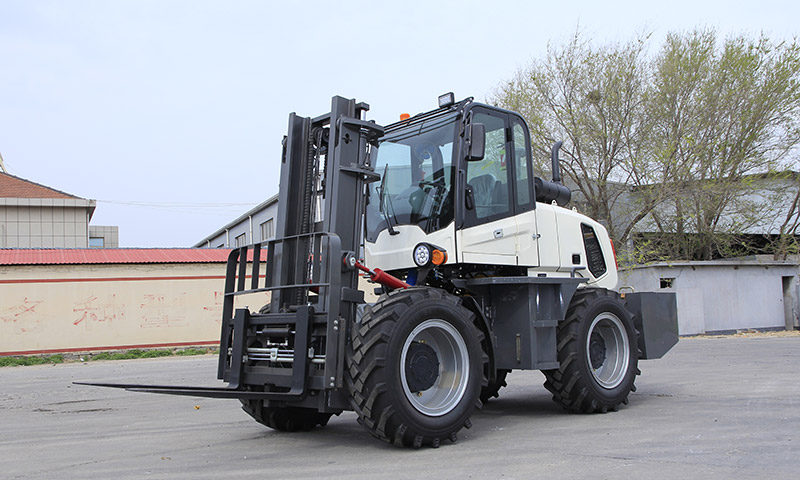

A HAMAC 6 ton articulated all‑terrain forklift has been put into service on a project involving uneven ground and mixed outdoor conditions, where standard warehouse forklifts are unable to operate safely or efficiently.

The machine was selected for its 4x4 wheel drive, rated capacity of 6,000 kg and ability to handle rough, sloped or loose surfaces commonly found on construction sites, timber yards, mining support areas and rural infrastructure projects.

Designed for ground that beats ordinary forklifts

Unlike standard counterbalance forklifts built for flat concrete floors, HAMAC's all‑terrain forklift uses an articulated frame and four‑wheel drive system to maintain traction and stability across gravel, mud, sand and sloped terrain.

With a maximum gradeability of 25 percent, the machine can climb loading ramps, stockpiles and uneven yard surfaces that would stop a conventional forklift, making it well suited to sites where ground conditions change throughout the day.

The forklift's ground clearance and hub reduction axle configuration are designed to absorb shocks from rough surfaces, helping protect the drivetrain during repeated cycles of loading and unloading in demanding environments.

Key specifications on this unit

This 6 ton model has an overall weight of 7,000 kg and overall dimensions of approximately 4.35 m in length, 2.0 m in width and 2.9 m in height, giving it a solid stance for handling heavy loads without tipping on uneven ground.

Power comes from a Yuchai 4102 supercharged engine rated at 78 kW, paired with a 4x4 drive system that channels power to all wheels for consistent traction regardless of surface conditions.

The mast offers a customizable lifting height between 3.0 m and 6.0 m, with gantry height adjustable from 2.25 m to 2.93 m, allowing the machine to be configured for different stacking and loading requirements depending on the application.

Attachments that extend its role beyond pallets

Beyond standard forks, the machine supports a wide range of quick‑change attachments, including buckets, tilting grabs, flat and round clamps, pipe clamps, side shifters and straight or flying boom cranes.

This flexibility allows operators to switch between handling palletized goods, loose bulk materials, round stock such as pipes or logs, and even snow clearing duties using a single base machine.

For sites that handle a mix of tasks throughout the year, such as agricultural operations or general contractors, the ability to reconfigure the same machine for different jobs helps reduce the need for multiple specialized vehicles.

Where all‑terrain forklifts are used

Typical applications for this class of machine include timber yards, where round clamps and pipe clamps handle logs and cut lumber across unpaved storage areas, and construction sites where materials must be moved across rough, partially graded ground before roads are finished.

Agricultural operations use articulated all‑terrain forklifts to move bales, feed and equipment across fields and farmyards, while mining support sites rely on their traction and stability to handle heavy components in areas without paved surfaces.

Ports, recycling yards and bulk material handling facilities also benefit from the machine's ground clearance and 4x4 drive when moving loads across scrap piles, aggregate stockpiles or gravel-covered yards.

Turning radius and maneuverability on site

Despite its heavy‑duty build, the 6 ton model maintains a compact minimum turning radius of around 4.0 m, supported by its articulated frame design that allows the front and rear sections to pivot relative to each other.

This articulation helps the forklift navigate around obstacles, stockpiles and other equipment in yards where space is limited, without requiring the wide turning space a rigid‑frame machine of similar size would need.

Operators report that the combination of articulation and 4x4 drive makes the machine noticeably more capable in soft or uneven ground compared to standard forklifts previously used on the same site.

Part of a wider all‑terrain forklift range

This 6 ton unit is part of HAMAC's broader all‑terrain forklift lineup, which spans from 3 ton to 10 ton capacity, allowing customers to select a machine sized to their typical loads and site conditions.

Smaller models in the range are aimed at general yard and agricultural use, while the larger 10 ton version, built with a reinforced axle and higher‑output engine, targets heavier industrial and infrastructure applications.

HAMAC notes that all models share the same core attachment system, allowing customers operating multiple units across different capacities to standardize on a common set of buckets, clamps and specialty tools.

Outlook for demanding worksites

As more contractors and industrial operators take on projects in remote or undeveloped locations, demand for machines that can handle both lifting and rough terrain in a single unit continues to grow.

HAMAC expects continued interest in its all‑terrain forklift range from sectors such as forestry, agriculture, mining support and general construction, where ground conditions often rule out conventional warehouse‑style forklifts.

The company plans to expand attachment options and gather further field feedback from operators using the 6 ton and other models across different climates and terrain types.
