FD35‑RTL
Rough Terrain Forklifts
Rated load capacity: 3,500 kg
Maximum lift height:3,000 mm
Consult now

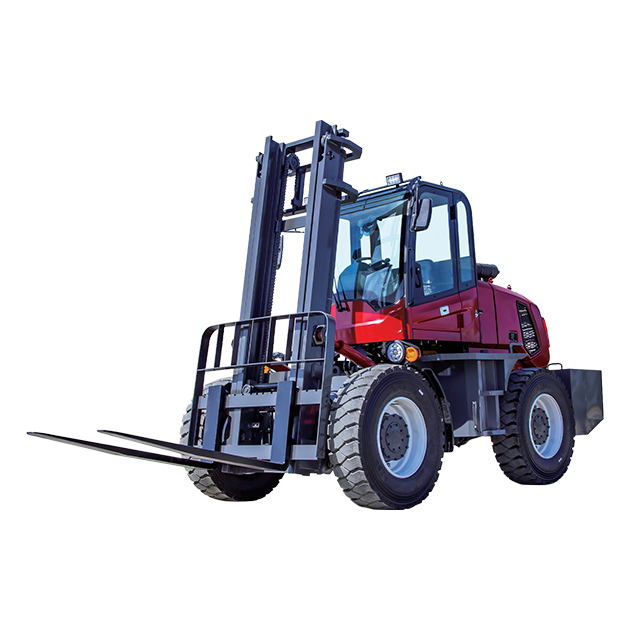

HAMAC FD50‑RTS rough terrain forklift is a 5 ton 4WD diesel forklift with a short wheelbase and compact frame, designed for very heavy loads on challenging ground where operating space is limited. It combines 5,000 kg lifting capacity, 4×4 traction, strong engine power and a tight turning radius so operators can lift and transport stone, timber and industrial materials across rugged, muddy and congested outdoor sites.
HAMAC FD50‑RTS rough terrain forklift is a short‑wheelbase evolution of the FD50‑RT platform, tailored for heavy outdoor sites that demand both 5 ton capacity and compact manoeuvrability. Its reduced wheelbase and tighter turning radius make FD50‑RTS ideal for stone yards, quarries, timber depots and construction sites where aisles are narrow, stacks are close together and access roads leave little room to turn.flexihire+3
With 4×4 traction, deep‑tread off‑road tyres and a high‑ground‑clearance chassis, the FD50‑RTS 5T compact rough terrain forklift maintains grip and stability on rocky, muddy and uneven ground. The heavy‑duty mast, reinforced frame and powerful diesel engine let operators handle stone blocks, large timber packs and dense industrial loads across rugged terrain while still fitting into tighter outdoor workspaces than standard 5 ton forklifts.
A rough terrain forklift is engineered specifically for outdoor use on uneven, muddy or soft surfaces, working reliably where standard warehouse trucks cannot operate safely.
Large, heavily treaded pneumatic tyres and increased ground clearance allow the machine to climb over ruts, rocks and debris while maintaining traction and stability on gravel, mud and grass.
Rough terrain forklifts usually feature high‑power diesel engines that deliver strong torque for climbing and pulling on rough surfaces, with long operating hours and no need for frequent charging.
Many models offer true 4WD or switchable 2WD/4WD systems, giving operators the flexibility to balance fuel economy and maximum traction depending on whether they are on firm yards or very soft ground.
Reinforced chassis, wide wheelbases and heavy‑duty suspension systems help rough terrain forklifts stay stable under heavy loads on sloping and uneven terrain, reducing the risk of tipping.
Thanks to their go‑anywhere design, rough terrain forklifts are indispensable in construction sites, farms, timber and stone yards, mining and even disaster‑relief operations, handling materials efficiently across multiple outdoor environments.
| Item | Unit | FD50-RTS Value |
|---|---|---|
| Rated load capacity | kg | 5000 |
| Load center | mm | 500–600 |
| Power type | - | Diesel |
| Drive type | - | 4WD rough terrain, short wheelbase |
| Mast type | - | Wide-view duplex / triplex mast |
| Max. lift height | mm | 4500 |
| Collapsed mast height | mm | approx. 2500–2800 |
| Free lift height | mm | up to 1500 (triplex mast) |
| Fork size (L × W × T) | mm | 1220 × 150 × 60 |
| Tilt angle (forward / back) | ° | 6 / 12 |
| Overall length (without fork) | mm | approx. 3200–3400 (short wheelbase) |
| Overall width | mm | approx. 1900–2100 |
| Overhead guard height | mm | approx. 2400–2600 |
| Wheelbase | mm | approx. 2100–2250 (short wheelbase) |
| Ground clearance (mast) | mm | 220–260 |
| Ground clearance (center) | mm | 250–330 |
| Front tyre size | - | 16/70-24 or similar off-road tyre |
| Rear tyre size | - | 10.00-20 or similar off-road tyre |
| Travel speed (loaded) | km/h | 18–22 |
| Travel speed (unloaded) | km/h | 22–28 |
| Max. gradeability (loaded) | % | 20–30 |
| Service weight | kg | approx. 8000–8500 |
| Engine type | - | 4-cylinder high-output diesel |
| Rated engine power | kW | 75 |
| Fuel tank capacity | L | 100–120 |
| Hydraulic oil tank capacity | L | 80–100 |
| Steering type | - | Hydraulic power steering |
| Brake system | - | Hydraulic / wet disc service |
