FD50‑RT
Rough Terrain Forklifts
Rated load capacity: 5,000 kg
Maximum lift height: approx. 3,000–4,500 mm
Consult now

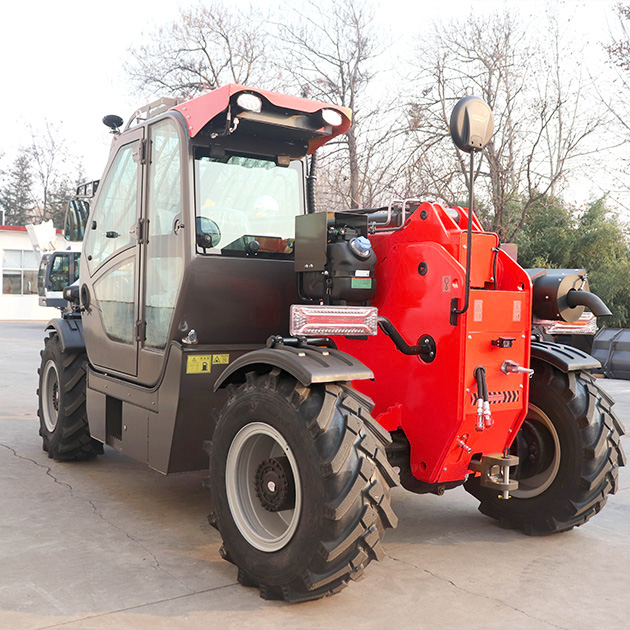

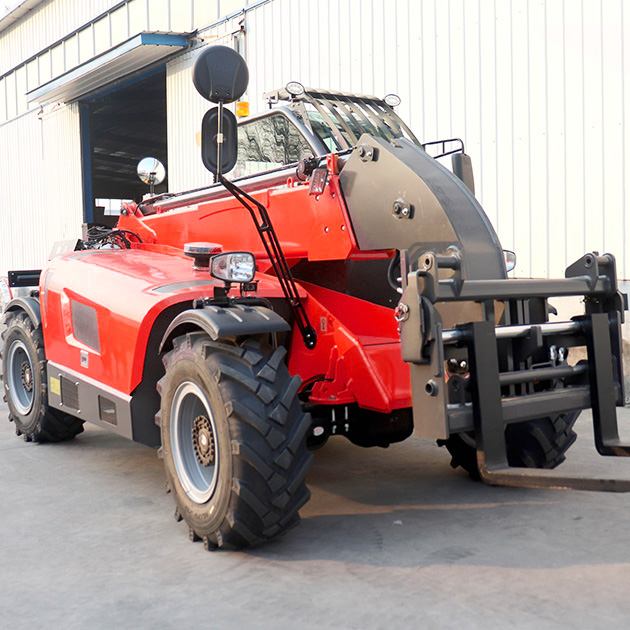

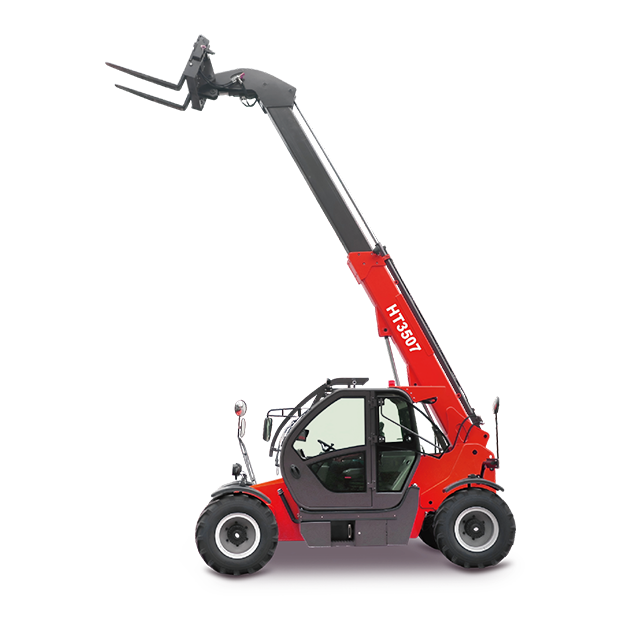

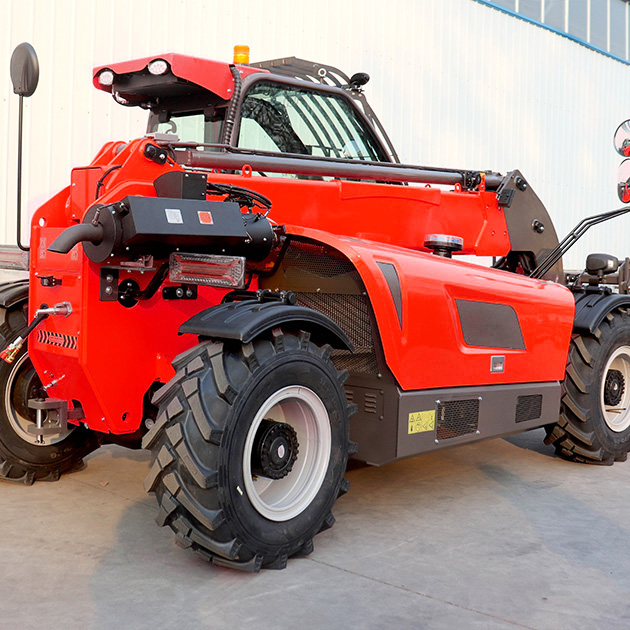

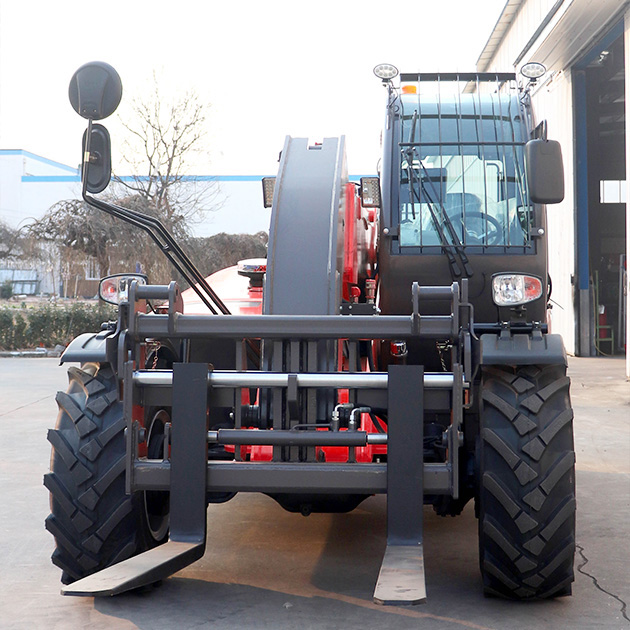

HT3507 telehandler is a heavy‑duty 3.5 ton telehandler with 7 m lifting height, designed for contractors, quarry and mining sites, and large farms that need more lifting margin in a compact footprint. With four‑wheel drive, robust axles and a telescopic boom reaching up to 7m telehandler height, it can safely handle bulk materials, pallets and heavy components on rough, uneven ground. Its short wheelbase and hydrostatic drive system give operators precise inching control, making loading, stacking and truck‑feeding operations smooth and efficient in tight working areas.
The HAMAC HT3507 is a compact 3.5 ton telehandler with a 7 m telescopic boom, engineered for construction and agricultural sites that demand more lifting capacity without sacrificing maneuverability. Its short overall length, optimized wheelbase and tight steering geometry allow it to work efficiently in confined yards, between buildings and around farm structures, while the dedicated 4×4 rough‑terrain chassis and multi‑mode steering provide strong traction and control on soft, uneven ground. With 7 m lift height and solid 3.5 t capacity, HT3507 can place heavy pallets, bulk bags and structural components onto elevated working platforms, upper floor slabs and high racks where traditional forklifts cannot reach.buckhurstplanthire+4
Using a heavy‑duty telescopic boom and hydraulic quick‑coupler, the HT3507 telehandler accepts forks, general‑purpose buckets, lifting jibs and work platforms so one machine can cover daily truck unloading, on‑site material transfer, bulk handling and low‑to‑mid level installation or inspection tasks. Typical applications include handling bricks, concrete and steel on building projects, feeding and stacking on farms, and supporting maintenance and loading operations around industrial plants. For owners and rental fleets looking for a telehandler that combines compact dimensions with genuine heavy‑duty capability, HT3507 offers an efficient all‑terrain solution that reduces the need for separate cranes, loaders and forklifts on many jobs.
A telehandler combines the roles of forklift, crane and loader in one compact unit, switching between forks, buckets, hooks and man‑baskets in minutes to handle many different tasks on the same site.
With its telescopic boom, a telehandler can place materials far higher and further than a conventional forklift, reaching upper floors, rooftops and deep into trucks or over obstacles without repositioning the machine.
Four‑wheel drive, high ground clearance and multiple steering modes (front, four‑wheel, crab steer) give telehandlers excellent traction and stability on mud, gravel and uneven ground where warehouse forklifts cannot work safely.
Telehandlers offer high load capacity in a relatively compact chassis, allowing them to maneuver in tight spaces and congested sites while still lifting several tons per pick to useful working heights.
Modern telehandlers include load charts, overload protection, stability control and boom management systems, helping operators stay within safe working envelopes and reducing the risk of tip‑over at long reach.
Because one telehandler can unload trucks, move materials across rough terrain and position them at height, it reduces the number of machines and operators needed, cuts rental and maintenance costs, and speeds up overall project progress.
| Weight and dimensions | Max. capacity | 2500 kg |
| Max. lifting height | 6.00 m | |
| Max. outreach | 2.16 m | |
| Weight and dimensions | Overall length to carriage | 4.00 m |
| Length to face of forks | 5.22 m | |
| Min transport size | 3.86 m | |
| Overall width | 2.02 m | |
| Track width | 1.70 m | |
| Overall height | 2.05 m | |
| Wheelbase | 2.80 m | |
| Ground clearance | 0.23 m | |
| Overall cab width | 0.82 m | |
| Tilt-up angle | 10 ° | |
| Tilt-down angle | 100 ° | |
| External turning radius (over tyres) | 4.50 m | |
| Unladen weight (with fork) | 5800 kg | |
| Tires type | Pneumatic | |
| Standard tires | 12-16.5 | |
| Forks length/ width/ section | 1220 mm × 122mm / 50 mm | |
| Performances | Lifting | 17 s |
| Lowering | 11 s | |
| Extension | 11 s | |
| Retraction | 6.5 s | |
| Crowd | 3.1 s | |
| Dump | 3.0 s | |
| Engine | Engine brand | Yunnei |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YN27GBZ | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| LC. Engine power rating - Power | 70.7 Hp / 58 kW | |
| Max. torque / Engine rotation | 181 Nm @ 2240 rpm | |
| Drawbar pull (Laden) | 4200 daN | |
| Capacities | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2 / 2 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air-cut brake | |
| Service brake | immersed multi-discs braking on front & rear axles | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow | 85 L/min - 220 bar | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 710L | |
| Fuel tank | 80L | |
| Noise and vibration | Noise at driving position (LpA) | 76 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab |
